is a virtual base class for the interface for a numerical fluid solver for the Couette scenario More...

#include <NumericalSolver.h>

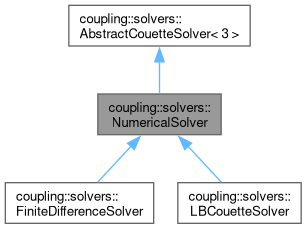

Inheritance diagram for coupling::solvers::NumericalSolver:

[legend]

Collaboration diagram for coupling::solvers::NumericalSolver:

[legend]

Public Member Functions
	NumericalSolver (const double channelheight, const double dx, const double dt, const double kinVisc, const int plotEveryTimestep, const std::string filestem, const tarch::la::Vector< 3, unsigned int > processes, const Scenario *scen=nullptr)
	a simple constructor

virtual	~NumericalSolver ()
	a simple destructor

void	setMDBoundary (tarch::la::Vector< 3, double > mdDomainOffset, tarch::la::Vector< 3, double > mdDomainSize, unsigned int overlapStrip)
	flags the domain boundary cells.

virtual void	setMDBoundaryValues (coupling::datastructures::FlexibleCellContainer< 3 > &md2macroBuffer)=0
	applies the values received from the MD-solver within the conntinuum solver

tarch::la::Vector< 3, unsigned int >	getNumberProcesses () const
	returns the number of process, regards parallel runs

tarch::la::Vector< 3, unsigned int >	getAvgNumberLBCells () const
	returns the average number of cells on each process

virtual double	getDensity (tarch::la::Vector< 3, double > pos) const =0
	returns the density for a given position

virtual void	setWallVelocity (const tarch::la::Vector< 3, double > wallVelocity)=0
	changes the velocity at the moving wall (z=0)

Public Member Functions inherited from coupling::solvers::AbstractCouetteSolver< 3 >
virtual	~AbstractCouetteSolver ()
	a dummy destructor

virtual void	advance (double dt)=0
	advances the solver in time

virtual tarch::la::Vector< dim, double >	getVelocity (tarch::la::Vector< dim, double > pos) const=0
	returns the current velocity at the given position

virtual void	setWallVelocity (const tarch::la::Vector< dim, double > wallVelocity)=0
	changes the velocity at the moving for, refers to Couette scenario

Static Public Member Functions
static int	getAvgDomainSize (double channelheight, double dx, tarch::la::Vector< 3, unsigned int > processes, int d)

Protected Types
enum	Flag { FLUID = 0 , NO_SLIP = 1 , MOVING_WALL = 2 , PERIODIC = 3 , MD_BOUNDARY = 4 , PARALLEL_BOUNDARY = 5 }
	for every cell exists a flag entry, upon this is defined how the cell is handled More...

enum	NbFlag { LEFT = 0 , RIGHT = 1 , BACK = 2 , FRONT = 3 , BOTTOM = 4 , TOP = 5 }
	The flags are used on parallel boundaries to define in which direction the boundary goes. More...

Protected Member Functions
int	get (int i) const
	returns i and performs checks in debug mode

int	get (int x, int y, int z) const
	returns linearized index and performs checks in debug mode

int	getParBuf (int x, int y, int lengthx, int lengthy) const
	returns index in 2D parallel buffer with buffer dimensions lengthx+2,lengthy+2. Performs checks in debug mode

void	plot () const

void	plot (std::string filename) const
	create vtk plot if required

bool	skipRank () const
	returns true, if this rank is not of relevance for the LB simulation

Protected Attributes
const double	_channelheight
	the height and width of the channel in z and y direction

const double	_dx
	mesh size, dx=dy=dz

const double	_dt
	time step

const double	_kinVisc
	kinematic viscosity of the fluid

tarch::la::Vector< 3, unsigned int >	_processes
	domain decomposition on MPI rank basis; total number is given by multipling all entries

const int	_plotEveryTimestep
	number of time steps between vtk plots

const std::string	_filestem
	file stem for vtk plot

const int	_domainSizeX {getDomainSize(_channelheight, _dx, _processes, 0)}
	domain size in x-direction

const int	_domainSizeY {getDomainSize(_channelheight, _dx, _processes, 1)}
	domain size in y-direction

const int	_domainSizeZ {getDomainSize(_channelheight, _dx, _processes, 2)}
	domain size in z-direction

const int	_avgDomainSizeX {getAvgDomainSize(_channelheight, _dx, _processes, 0)}
	avg. domain size in MPI-parallel simulation in x-direction

const int	_avgDomainSizeY {getAvgDomainSize(_channelheight, _dx, _processes, 1)}
	avg. domain size in MPI-parallel simulation in y-direction

const int	_avgDomainSizeZ {getAvgDomainSize(_channelheight, _dx, _processes, 2)}
	avg. domain size in MPI-parallel simulation in z-direction

const tarch::la::Vector< 3, unsigned int >	_coords {getProcessCoordinates()}
	coordinates of this process (=1,1,1, unless parallel run of the solver )

int	_counter {0}
	time step counter

double *	_vel {NULL}
	velocity field

double *	_density {NULL}
	density field

Flag *	_flag {NULL}
	flag field

double *	_sendBufferX {NULL}
	buffer to send data from left/right to right/left neighbour

double *	_recvBufferX {NULL}
	buffer to receive data from from left/right neighbour

double *	_sendBufferY {NULL}
	buffer to send data from front/back to front/back neighbour

double *	_recvBufferY {NULL}
	buffer to receive data from from front/back neighbour

double *	_sendBufferZ {NULL}
	buffer to send data from top/buttom to top/buttom neighbour

double *	_recvBufferZ {NULL}
	buffer to receive data from from top/buttom neighbour

const int	_xO {_domainSizeX + 2}
	offset for y-direction (lexicographic grid ordering)

const int	_yO {(_domainSizeX + 2) * (_domainSizeY + 2)}
	offset for z-direction

tarch::la::Vector< 6, int >	_parallelNeighbours {(-1)}
	neighbour ranks

tarch::la::Vector< 3, int >	_offset {(-1)}
	offset of the md domain

tarch::la::Vector< 3, int >	_globalNumberCouplingCells {(-1)}
	the total number of coupling cells of the coupled simulation

const Scenario *	_scen

Private Member Functions
tarch::la::Vector< 3, unsigned int >	getProcessCoordinates () const
	determines the process coordinates

void	determineParallelNeighbours ()
	determines the neighbour relation between the processes

void	setParallelBoundaryFlags ()
	sets parallel boundary flags according to Couette scenario

int	getDomainSize (double channelheight, double dx, tarch::la::Vector< 3, unsigned int > processes, int d) const
	determines the local domain size on this rank where channelheight is the domain length in direction d.

Detailed Description

is a virtual base class for the interface for a numerical fluid solver for the Couette scenario

The setup is, a 3d solver. A channel flow for the Couette scenario, where the moving wall is located at the lower wall (z=0)

Author: Philipp Neumann & Helene Wittenberg

Member Enumeration Documentation

◆ Flag

enum coupling::solvers::NumericalSolver::Flag

protected

for every cell exists a flag entry, upon this is defined how the cell is handled

Enumerator
FLUID	a normal fluid cell
NO_SLIP	a cell on the no slip (non-moving) wall
MOVING_WALL	a cell on the moving wall
PERIODIC	a cell on a periodic boundary
MD_BOUNDARY	a cell on the boundary to md
PARALLEL_BOUNDARY	a cell on a inner boundary of a splitted domain in a parallel run

◆ NbFlag

enum coupling::solvers::NumericalSolver::NbFlag

protected

The flags are used on parallel boundaries to define in which direction the boundary goes.

Enumerator
LEFT	a parallel boundary to the left
RIGHT	a parallel boundary to the right
BACK	a parallel boundary to the back
FRONT	a parallel boundary to the front
BOTTOM	a parallel boundary to the bottom
TOP	a parallel boundary to the top

Constructor & Destructor Documentation

◆ NumericalSolver()

coupling::solvers::NumericalSolver::NumericalSolver	(	const double	channelheight,
		const double	dx,
		const double	dt,
		const double	kinVisc,
		const int	plotEveryTimestep,
		const std::string	filestem,
		const tarch::la::Vector< 3, unsigned int >	processes,
		const Scenario *	scen = nullptr )

inline

a simple constructor

Parameters

channelheight	the width and height of the channel in y and z direction
dx	the spacial step size, and equidistant grid is applied
dt	the time step
kinVisc	the kinematic viscosity of the fluid
plotEveryTimestep	the time step interval for plotting data; 4 means, every 4th time step is plotted
filestem	the name of the plotted file
processes	defines on how many processes the solver will run; 1,1,1 - sequential run - 1,2,2 = 122 = 4 processes

Member Function Documentation

◆ get() [1/2]

int coupling::solvers::NumericalSolver::get ( int i ) const

inlineprotected

returns i and performs checks in debug mode

Returns: i

◆ get() [2/2]

int coupling::solvers::NumericalSolver::get	(	int	x,
		int	y,
		int	z ) const

inlineprotected

returns linearized index and performs checks in debug mode

Returns: the linearized index

◆ getAvgDomainSize()

static int coupling::solvers::NumericalSolver::getAvgDomainSize	(	double	channelheight,
		double	dx,
		tarch::la::Vector< 3, unsigned int >	processes,
		int	d )

inlinestatic

determines the "avg" domain size which is the domain size on each MPI process, except for potentially the last one (the last one may include additional cells)

◆ getAvgNumberLBCells()

tarch::la::Vector< 3, unsigned int > coupling::solvers::NumericalSolver::getAvgNumberLBCells ( ) const

inline

returns the average number of cells on each process

Returns: the average number of cells

◆ getDensity()

virtual double coupling::solvers::NumericalSolver::getDensity ( tarch::la::Vector< 3, double > pos ) const

pure virtual

returns the density for a given position

Parameters

pos	position for which the density will be returned

Returns: the density

Implemented in coupling::solvers::FiniteDifferenceSolver, and coupling::solvers::LBCouetteSolver.

◆ getDomainSize()

int coupling::solvers::NumericalSolver::getDomainSize	(	double	channelheight,
		double	dx,
		tarch::la::Vector< 3, unsigned int >	processes,
		int	d ) const

inlineprivate

determines the local domain size on this rank where channelheight is the domain length in direction d.

Returns: the size of the domain

◆ getNumberProcesses()

tarch::la::Vector< 3, unsigned int > coupling::solvers::NumericalSolver::getNumberProcesses ( ) const

inline

returns the number of process, regards parallel runs

Returns: the number of processes

◆ getParBuf()

int coupling::solvers::NumericalSolver::getParBuf	(	int	x,
		int	y,
		int	lengthx,
		int	lengthy ) const

inlineprotected

returns index in 2D parallel buffer with buffer dimensions lengthx+2,lengthy+2. Performs checks in debug mode

Returns: the index in the buffer

◆ getProcessCoordinates()

tarch::la::Vector< 3, unsigned int > coupling::solvers::NumericalSolver::getProcessCoordinates ( ) const

inlineprivate

determines the process coordinates

Returns: the coordinates of the current process

◆ setMDBoundary()

void coupling::solvers::NumericalSolver::setMDBoundary	(	tarch::la::Vector< 3, double >	mdDomainOffset,
		tarch::la::Vector< 3, double >	mdDomainSize,
		unsigned int	overlapStrip )

inline

flags the domain boundary cells.

Parameters

mdDomainOffset	lower/left/front corner of the MD domain
mdDomainSize	total 3d size of the md domain
overlapStrip	the number of cells in the overlap layer; The overlap of md and macro cells
recvIndice	the coupling cell indices that will be received
size	the number of cells that will be received

◆ setMDBoundaryValues()

virtual void coupling::solvers::NumericalSolver::setMDBoundaryValues ( coupling::datastructures::FlexibleCellContainer< 3 > & md2macroBuffer )

pure virtual

applies the values received from the MD-solver within the conntinuum solver

Parameters

md2macroBuffer holds the data from the md solver coupling cells

Implemented in coupling::solvers::FiniteDifferenceSolver, and coupling::solvers::LBCouetteSolver.

◆ setWallVelocity()

virtual void coupling::solvers::NumericalSolver::setWallVelocity ( const tarch::la::Vector< 3, double > wallVelocity )

pure virtual

changes the velocity at the moving wall (z=0)

Parameters

wallVelocity new wall velocity to apply

Implemented in coupling::solvers::FiniteDifferenceSolver, and coupling::solvers::LBCouetteSolver.

◆ skipRank()

bool coupling::solvers::NumericalSolver::skipRank ( ) const

inlineprotected

returns true, if this rank is not of relevance for the LB simulation

Returns: a bool, which indicates if the rank shall not do anything (true) or not (false)

The documentation for this class was generated from the following file:

coupling/solvers/NumericalSolver.h

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Member Enumeration Documentation

◆ Flag

◆ NbFlag

Constructor & Destructor Documentation

◆ NumericalSolver()

Member Function Documentation

◆ get() [1/2]

◆ get() [2/2]

◆ getAvgDomainSize()

◆ getAvgNumberLBCells()

◆ getDensity()

◆ getDomainSize()

◆ getNumberProcesses()

◆ getParBuf()

◆ getProcessCoordinates()

◆ setMDBoundary()

◆ setMDBoundaryValues()

◆ setWallVelocity()

◆ skipRank()
