implements a three-dimensional Lattice-Boltzmann Couette flow solver. More...

#include <LBCouetteSolver.h>

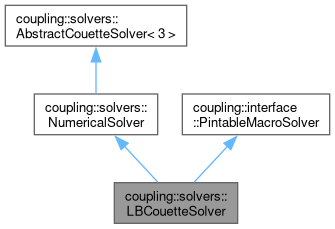

Inheritance diagram for coupling::solvers::LBCouetteSolver:

[legend]

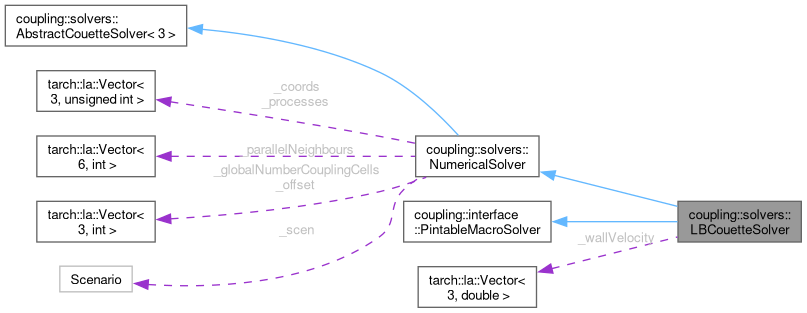

Collaboration diagram for coupling::solvers::LBCouetteSolver:

[legend]

Public Member Functions
	LBCouetteSolver (const double channelheight, tarch::la::Vector< 3, double > wallVelocity, const double kinVisc, const double dx, const double dt, const int plotEveryTimestep, const bool plotAverageVelocity, const std::string filestem, const tarch::la::Vector< 3, unsigned int > processes, const unsigned int numThreads=1, const Scenario *scen=nullptr)
	a simple constructor
virtual	~LBCouetteSolver ()
	a simple destructor
void	advance (double dt) override
	advances one time step dt in time and triggers vtk plot if required
void	setMDBoundaryValues (coupling::datastructures::FlexibleCellContainer< 3 > &md2macroBuffer) override
	applies the values received from the MD-solver within the conntinuum solver
tarch::la::Vector< 3, double >	getVelocity (tarch::la::Vector< 3, double > pos) const override
	returns velocity at a certain position
double	getDensity (tarch::la::Vector< 3, double > pos) const override
	returns density at a certain position
virtual void	setWallVelocity (const tarch::la::Vector< 3, double > wallVelocity) override
	changes the velocity at the moving wall (z=0)
std::unique_ptr< State >	getState () override
void	setState (const std::unique_ptr< State > &input, int cycle) override
std::unique_ptr< State >	operator() (const std::unique_ptr< State > &input, int cycle) override
Mode	getMode () const override
std::unique_ptr< PintableMacroSolver >	getSupervisor (int num_cycles, double visc_multiplier) const override
void	print (std::ostream &os) const override
double	get_avg_vel (const std::unique_ptr< State > &state) const override
double	get_avg_velX (const std::unique_ptr< State > &state) const
Public Member Functions inherited from coupling::solvers::NumericalSolver
	NumericalSolver (const double channelheight, const double dx, const double dt, const double kinVisc, const int plotEveryTimestep, const std::string filestem, const tarch::la::Vector< 3, unsigned int > processes, const Scenario *scen=nullptr)
	a simple constructor
virtual	~NumericalSolver ()
	a simple destructor
void	setMDBoundary (tarch::la::Vector< 3, double > mdDomainOffset, tarch::la::Vector< 3, double > mdDomainSize, unsigned int overlapStrip)
	flags the domain boundary cells.
tarch::la::Vector< 3, unsigned int >	getNumberProcesses () const
	returns the number of process, regards parallel runs
tarch::la::Vector< 3, unsigned int >	getAvgNumberLBCells () const
	returns the average number of cells on each process
Public Member Functions inherited from coupling::solvers::AbstractCouetteSolver< 3 >
virtual	~AbstractCouetteSolver ()
	a dummy destructor
virtual tarch::la::Vector< dim, double >	getVelocity (tarch::la::Vector< dim, double > pos) const=0
	returns the current velocity at the given position
virtual void	setWallVelocity (const tarch::la::Vector< dim, double > wallVelocity)=0
	changes the velocity at the moving for, refers to Couette scenario

Private Member Functions
void	computeDensityAndVelocityEverywhere ()
void	plot_avg_vel ()
void	collidestream ()
	collide-stream algorithm for the Lattice-Boltzmann method
void	stream (int index)
	the stream part of the LB algorithm (from pdf1 to pdf2)
void	collide (int index, int x, int y, int z)
void	boundary (double *const pdf, int index, int x, int y, int z, int q, const Flag &flag, int nbIndex)
	takes care of the correct boundary treatment for the LB method
void	communicatePart (double pdf, double sendBuffer, double *recvBuffer, NbFlag nbFlagTo, NbFlag nbFlagFrom, tarch::la::Vector< 3, int > startSend, tarch::la::Vector< 3, int > endSend, tarch::la::Vector< 3, int > startRecv, tarch::la::Vector< 3, int > endRecv)
void	communicate ()
	comunicates the boundary field data between the different processes

Static Private Member Functions
static void	computeDensityAndVelocity (double const vel, double &density, const double const pdf)
	refers to the LB method; computes density and velocity on pdf

Private Attributes
Mode	_mode
double	_dt_pint
const double	_omega
	relaxation frequency
tarch::la::Vector< 3, double >	_wallVelocity
	velocity of moving wall of Couette flow
int	_pdfsize {0}
double *	_pdf1 {NULL}
	partical distribution function field
double *	_pdf2 {NULL}
	partial distribution function field (stores the old time step)
const int	_C [19][3]
	lattice velocities
const double	_W [19]
	lattice weights
const bool	_plotAverageVelocity
	enables avg_vel CSV output

Additional Inherited Members
Public Types inherited from coupling::interface::PintableMacroSolver
enum class	Mode { supervising , coupling }
using	State = PintableMacroSolverState
Static Public Member Functions inherited from coupling::solvers::NumericalSolver
static int	getAvgDomainSize (double channelheight, double dx, tarch::la::Vector< 3, unsigned int > processes, int d)
Protected Types inherited from coupling::solvers::NumericalSolver
enum	Flag { FLUID = 0 , NO_SLIP = 1 , MOVING_WALL = 2 , PERIODIC = 3 , MD_BOUNDARY = 4 , PARALLEL_BOUNDARY = 5 }
	for every cell exists a flag entry, upon this is defined how the cell is handled More...
enum	NbFlag { LEFT = 0 , RIGHT = 1 , BACK = 2 , FRONT = 3 , BOTTOM = 4 , TOP = 5 }
	The flags are used on parallel boundaries to define in which direction the boundary goes. More...
Protected Member Functions inherited from coupling::solvers::NumericalSolver
int	get (int i) const
	returns i and performs checks in debug mode
int	get (int x, int y, int z) const
	returns linearized index and performs checks in debug mode
int	getParBuf (int x, int y, int lengthx, int lengthy) const
	returns index in 2D parallel buffer with buffer dimensions lengthx+2,lengthy+2. Performs checks in debug mode
void	plot () const
void	plot (std::string filename) const
	create vtk plot if required
bool	skipRank () const
	returns true, if this rank is not of relevance for the LB simulation
Protected Attributes inherited from coupling::solvers::NumericalSolver
const double	_channelheight
	the height and width of the channel in z and y direction
const double	_dx
	mesh size, dx=dy=dz
const double	_dt
	time step
const double	_kinVisc
	kinematic viscosity of the fluid
tarch::la::Vector< 3, unsigned int >	_processes
	domain decomposition on MPI rank basis; total number is given by multipling all entries
const int	_plotEveryTimestep
	number of time steps between vtk plots
const std::string	_filestem
	file stem for vtk plot
const int	_domainSizeX {getDomainSize(_channelheight, _dx, _processes, 0)}
	domain size in x-direction
const int	_domainSizeY {getDomainSize(_channelheight, _dx, _processes, 1)}
	domain size in y-direction
const int	_domainSizeZ {getDomainSize(_channelheight, _dx, _processes, 2)}
	domain size in z-direction
const int	_avgDomainSizeX {getAvgDomainSize(_channelheight, _dx, _processes, 0)}
	avg. domain size in MPI-parallel simulation in x-direction
const int	_avgDomainSizeY {getAvgDomainSize(_channelheight, _dx, _processes, 1)}
	avg. domain size in MPI-parallel simulation in y-direction
const int	_avgDomainSizeZ {getAvgDomainSize(_channelheight, _dx, _processes, 2)}
	avg. domain size in MPI-parallel simulation in z-direction
const tarch::la::Vector< 3, unsigned int >	_coords {getProcessCoordinates()}
	coordinates of this process (=1,1,1, unless parallel run of the solver )
int	_counter {0}
	time step counter
double *	_vel {NULL}
	velocity field
double *	_density {NULL}
	density field
Flag *	_flag {NULL}
	flag field
double *	_sendBufferX {NULL}
	buffer to send data from left/right to right/left neighbour
double *	_recvBufferX {NULL}
	buffer to receive data from from left/right neighbour
double *	_sendBufferY {NULL}
	buffer to send data from front/back to front/back neighbour
double *	_recvBufferY {NULL}
	buffer to receive data from from front/back neighbour
double *	_sendBufferZ {NULL}
	buffer to send data from top/buttom to top/buttom neighbour
double *	_recvBufferZ {NULL}
	buffer to receive data from from top/buttom neighbour
const int	_xO {_domainSizeX + 2}
	offset for y-direction (lexicographic grid ordering)
const int	_yO {(_domainSizeX + 2) * (_domainSizeY + 2)}
	offset for z-direction
tarch::la::Vector< 6, int >	_parallelNeighbours {(-1)}
	neighbour ranks
tarch::la::Vector< 3, int >	_offset {(-1)}
	offset of the md domain
tarch::la::Vector< 3, int >	_globalNumberCouplingCells {(-1)}
	the total number of coupling cells of the coupled simulation
const Scenario *	_scen

Detailed Description

implements a three-dimensional Lattice-Boltzmann Couette flow solver.

In our scenario, the lower wall is accelerated and the upper wall stands still. The lower wall is located at zero height.

Author: Philipp Neumann

Constructor & Destructor Documentation

◆ LBCouetteSolver()

coupling::solvers::LBCouetteSolver::LBCouetteSolver	(	const double	channelheight,
		tarch::la::Vector< 3, double >	wallVelocity,
		const double	kinVisc,
		const double	dx,
		const double	dt,
		const int	plotEveryTimestep,
		const bool	plotAverageVelocity,
		const std::string	filestem,
		const tarch::la::Vector< 3, unsigned int >	processes,
		const unsigned int	numThreads = 1,
		const Scenario *	scen = nullptr )

inline

a simple constructor

Parameters

channelheight	the width and height of the channel in y and z direction
wallVelocity	velocity at the moving wall, refers to Couette scenario
dx	the spacial step size, and equidistant grid is applied
dt	the time step
kinVisc	the kinematic viscosity of the fluid
plotEveryTimestep	the time step interval for plotting data; 4 means, every 4th time step is plotted
plotAverageVelocity	writes average velocity for all time steps into CSV file
filestem	the name of the plotted file
processes	defines on how many processes the solver will run; 1,1,1 - sequential run - 1,2,2 = 122 = 4 processes
numThreads	number of OpenMP threads

Member Function Documentation

◆ advance()

void coupling::solvers::LBCouetteSolver::advance ( double dt )

inlineoverridevirtual

advances one time step dt in time and triggers vtk plot if required

Implements coupling::solvers::AbstractCouetteSolver< 3 >.

◆ boundary()

void coupling::solvers::LBCouetteSolver::boundary	(	double *const	pdf,
		int	index,
		int	x,
		int	y,
		int	z,
		int	q,
		const Flag &	flag,
		int	nbIndex )

inlineprivate

takes care of the correct boundary treatment for the LB method

Parameters

pdf	particle distribution function
index	start index for current cell in pdf-array
x	the position in x direction of the cell
y	the position in y direction of the cell
z	the position in z direction of the cell
q	distribution function number
flag	boundary flag of neighbouring cell
nbIndex	index of neighbouring cell

◆ collide()

void coupling::solvers::LBCouetteSolver::collide	(	int	index,
		int	x,
		int	y,
		int	z )

inlineprivate

@brieff the collide step within pdf2

◆ collidestream()

void coupling::solvers::LBCouetteSolver::collidestream ( )

inlineprivate

collide-stream algorithm for the Lattice-Boltzmann method

------------------------------------------------------------------------------------------------------ End of Pint methods —— End of Pint methods —— End of Pint methods —— End of Pint methods —————————————————————————————————— calls stream() and collide() and swaps the fields

◆ communicatePart()

void coupling::solvers::LBCouetteSolver::communicatePart	(	double *	pdf,
		double *	sendBuffer,
		double *	recvBuffer,
		NbFlag	nbFlagTo,
		NbFlag	nbFlagFrom,
		tarch::la::Vector< 3, int >	startSend,
		tarch::la::Vector< 3, int >	endSend,
		tarch::la::Vector< 3, int >	startRecv,
		tarch::la::Vector< 3, int >	endRecv )

inlineprivate

takes care of communication across one face in one direction.

Parameters

pdf	partial distribution function
sendBuffer	send buffer
recvBuffer	receive buffer
nbFlagTo	direction into which message is sent
nbFlagFrom	direction from which message is received
startSend	3d coordinates that define the start of the data to be sent to neighbouring process
endSend	3d coordinates that define the end of the data to to be sent to neighbouring process
startRecv	3d coordinates that define the start of the data to be received from neighbouring process
endRecv	3d coordinates that define the end of the data to be received from neighbouring process

◆ computeDensityAndVelocity()

void coupling::solvers::LBCouetteSolver::computeDensityAndVelocity	(	double *const	vel,
		double &	density,
		const double *const	pdf )

inlinestaticprivate

refers to the LB method; computes density and velocity on pdf

Parameters

vel	velocity
density	density
pdf	partial distribution function

◆ get_avg_vel()

double coupling::solvers::LBCouetteSolver::get_avg_vel ( const std::unique_ptr< State > & state ) const

inlineoverridevirtual

Useful to test if a solver behaves as expected, similar to a "det(state)": should return a single numeric value that characterises the state object, by computing the mean flow velocity

Reimplemented from coupling::interface::PintableMacroSolver.

◆ getDensity()

double coupling::solvers::LBCouetteSolver::getDensity ( tarch::la::Vector< 3, double > pos ) const

inlineoverridevirtual

returns density at a certain position

Parameters

pos	position for which the density will be returned

Returns: the density vector for the position

Implements coupling::solvers::NumericalSolver.

◆ getMode()

Mode coupling::solvers::LBCouetteSolver::getMode ( ) const

inlineoverridevirtual

returns either Mode.supervising or Mode.coupling

Implements coupling::interface::PintableMacroSolver.

◆ getState()

std::unique_ptr< State > coupling::solvers::LBCouetteSolver::getState ( )

inlineoverridevirtual

------------------------------------------------------------------------------------------------------ Pint methods —— Pint methods —— Pint methods —— Pint methods —— Pint methods ——————————————————————————————————

Implements coupling::interface::PintableMacroSolver.

◆ getSupervisor()

std::unique_ptr< PintableMacroSolver > coupling::solvers::LBCouetteSolver::getSupervisor	(	int	num_cycles,
		double	visc_multiplier ) const

inlineoverridevirtual

This will create a new instance of this LBCouetteSolver In the supervisor, setMDBoundary() has not been called, independently of state of couette solver in coupling mode The supervisor can run with a modified viscosity The supervisor's operator() advances many coupling cycles at once, interval is stored in _dt_pint

Implements coupling::interface::PintableMacroSolver.

◆ getVelocity()

tarch::la::Vector< 3, double > coupling::solvers::LBCouetteSolver::getVelocity ( tarch::la::Vector< 3, double > pos ) const

inlineoverride

returns velocity at a certain position

Parameters

pos	position for which the velocity will be returned

Returns: the velocity vector for the position

◆ operator()()

std::unique_ptr< State > coupling::solvers::LBCouetteSolver::operator()	(	const std::unique_ptr< State > &	input,
		int	cycle )

inlineoverridevirtual

This advances the macroSolver by one time step, starting from the given state

Implements coupling::interface::PintableMacroSolver.

◆ print()

void coupling::solvers::LBCouetteSolver::print ( std::ostream & os ) const

inlineoverridevirtual

this is expected to print information about the mode and type of this solver object to os

Implements coupling::interface::PintableMacroSolver.

◆ setMDBoundaryValues()

void coupling::solvers::LBCouetteSolver::setMDBoundaryValues ( coupling::datastructures::FlexibleCellContainer< 3 > & md2macroBuffer )

inlineoverridevirtual

applies the values received from the MD-solver within the conntinuum solver

Parameters

md2macroBuffer holds the data from the md solver coupling cells

Implements coupling::solvers::NumericalSolver.

◆ setState()

void coupling::solvers::LBCouetteSolver::setState	(	const std::unique_ptr< State > &	input,
		int	cycle )

inlineoverridevirtual

This method fully reset / initialize the CFD solver to the given state

Implements coupling::interface::PintableMacroSolver.

◆ setWallVelocity()

virtual void coupling::solvers::LBCouetteSolver::setWallVelocity ( const tarch::la::Vector< 3, double > wallVelocity )

inlineoverridevirtual

changes the velocity at the moving wall (z=0)

Parameters

wallVelocity the velocity will be set at the moving wall

Implements coupling::solvers::NumericalSolver.

Member Data Documentation

◆ _C

const int coupling::solvers::LBCouetteSolver::_C[19][3]

private

Initial value:

{{0, -1, -1}, {-1, 0, -1}, {0, 0, -1}, {1, 0, -1}, {0, 1, -1}, {-1, -1, 0}, {0, -1, 0}, {1, -1, 0}, {-1, 0, 0}, {0, 0, 0},

{1, 0, 0}, {-1, 1, 0}, {0, 1, 0}, {1, 1, 0}, {0, -1, 1}, {-1, 0, 1}, {0, 0, 1}, {1, 0, 1}, {0, 1, 1}}

lattice velocities

◆ _W

const double coupling::solvers::LBCouetteSolver::_W[19]

private

Initial value:

{1.0 / 36.0, 1.0 / 36.0, 1.0 / 18.0, 1.0 / 36.0, 1.0 / 36.0, 1.0 / 36.0, 1.0 / 18.0, 1.0 / 36.0, 1.0 / 18.0, 1.0 / 3.0,

1.0 / 18.0, 1.0 / 36.0, 1.0 / 18.0, 1.0 / 36.0, 1.0 / 36.0, 1.0 / 36.0, 1.0 / 18.0, 1.0 / 36.0, 1.0 / 36.0}

lattice weights

The documentation for this class was generated from the following file:

coupling/solvers/LBCouetteSolver.h

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LBCouetteSolver()

Member Function Documentation

◆ advance()

◆ boundary()

◆ collide()

◆ collidestream()

◆ communicatePart()

◆ computeDensityAndVelocity()

◆ get_avg_vel()

◆ getDensity()

◆ getMode()

◆ getState()

◆ getSupervisor()

◆ getVelocity()

◆ operator()()

◆ print()

◆ setMDBoundaryValues()

◆ setState()

◆ setWallVelocity()

Member Data Documentation

◆ _C

◆ _W
