coupling::solvers::LBCouetteSolverInterface Class Reference

interface for the LBCouetteSolver More...

#include <LBCouetteSolverInterface.h>

Inheritance diagram for coupling::solvers::LBCouetteSolverInterface:

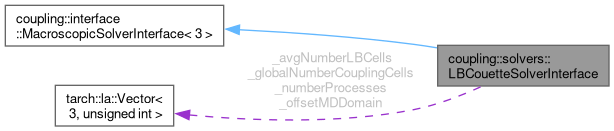

Collaboration diagram for coupling::solvers::LBCouetteSolverInterface:

Public Member Functions
	LBCouetteSolverInterface (tarch::la::Vector< 3, unsigned int > avgNumberLBCells, tarch::la::Vector< 3, unsigned int > numberProcesses, tarch::la::Vector< 3, unsigned int > offsetMDDomain, tarch::la::Vector< 3, unsigned int > globalNumberCouplingCells, unsigned int outerRegion=1)
	a simple constructor
unsigned int	getOuterRegion () override
std::vector< unsigned int >	getRanks (I01 idx) override
	returns for a given coupling cell index, which rank holds the correct data @oaram idx global dimensioned cell index to check for
std::vector< unsigned int >	getSourceRanks (I01 idx) override
	returns for a given coupling cell index, which source rank holds the correct data
Public Member Functions inherited from coupling::interface::MacroscopicSolverInterface< 3 >
	MacroscopicSolverInterface ()
virtual	~MacroscopicSolverInterface ()
virtual std::vector< unsigned int >	getTargetRanks (I01 idx)

Private Attributes
const tarch::la::Vector< 3, unsigned int >	_avgNumberLBCells
	avg. number of LB cells per LB process (must be same for Interface and LBCouetteSolver)
const tarch::la::Vector< 3, unsigned int >	_numberProcesses
	number of processes used by LB solver
const tarch::la::Vector< 3, unsigned int >	_offsetMDDomain
	offset of MD domain (excl. any ghost layers on MD or LB side)
const unsigned int	_outerRegion
	defines an offset of cells which is considered to be the outer region
const tarch::la::Vector< 3, unsigned int >	_globalNumberCouplingCells
	global number of coupling cells

Detailed Description

interface for the LBCouetteSolver

We only receive data from MD in the inner region, and we only send data for the outer region to MD. What "outer" means is specified by the arguments of the interface; moreover, we do not send the ghost layer data from Couette to MD. "inner" refers to "not outer" ;-) By default, the argument outerRegion is set to 1: this yields that only the first non-ghost layer of coupling cells shall be sent to MD, and all other inner coupling cells are received from MD.

Author

Philipp Neumann

Constructor & Destructor Documentation

LBCouetteSolverInterface()

coupling::solvers::LBCouetteSolverInterface::LBCouetteSolverInterface ( tarch::la::Vector< 3, unsigned int > avgNumberLBCells, tarch::la::Vector< 3, unsigned int > numberProcesses, tarch::la::Vector< 3, unsigned int > offsetMDDomain, tarch::la::Vector< 3, unsigned int > globalNumberCouplingCells, unsigned int outerRegion = 1 )

inline

a simple constructor

Parameters

avgNumberLBCells	the average number of cells per process of the lattice Boltzmann solver (dimensioned)
numberProcesses	the total number of mpi processes on which the solver is parallelised
offsetMDDomain	offset (measured in cell units) of the MD domain (excluding any (LB/MD) ghost layers)
globalNumberCouplingCells	the total number of coupling cells
outerRegion	defines, how many cell layers will be sent to the macro solver

Member Function Documentation

getOuterRegion()

unsigned int coupling::solvers::LBCouetteSolverInterface::getOuterRegion ( )

inlineoverridevirtual

Implements coupling::interface::MacroscopicSolverInterface< 3 >.

getRanks()

std::vector< unsigned int > coupling::solvers::LBCouetteSolverInterface::getRanks ( I01 idx )

inlineoverridevirtual

returns for a given coupling cell index, which rank holds the correct data @oaram idx global dimensioned cell index to check for

Returns

a vector containing all correct ranks

Implements coupling::interface::MacroscopicSolverInterface< 3 >.

getSourceRanks()

std::vector< unsigned int > coupling::solvers::LBCouetteSolverInterface::getSourceRanks ( I01 idx )

inlineoverridevirtual

returns for a given coupling cell index, which source rank holds the correct data

provides the ranks of the Couette solver that send valid LB flow data to the coupling tool. Since we may have multiple copies of a cell due to the ghost layers of the LBCouetteSolver, those ghost cell copies do not contain valid information. We therefore need to come up with a special implementation for getSourceRanks(). This implementation only returns one rank per cell, that is the rank which holds the non-ghost cell copy.

Parameters

idx	global dimensioned cell index to check for

Returns

the vector of the correct rank

Reimplemented from coupling::interface::MacroscopicSolverInterface< 3 >.

---

The documentation for this class was generated from the following file:

• coupling/solvers/LBCouetteSolverInterface.h
