This is the same as the class coupling::cellmappings::VelocityGradientRelaxationMapping, but relaxes only those molecules which are located in the top boundary strip. More...

#include <VelocityGradientRelaxationMapping.h>

Inheritance diagram for coupling::cellmappings::VelocityGradientRelaxationTopOnlyMapping< LinkedCell, dim >:

[legend]

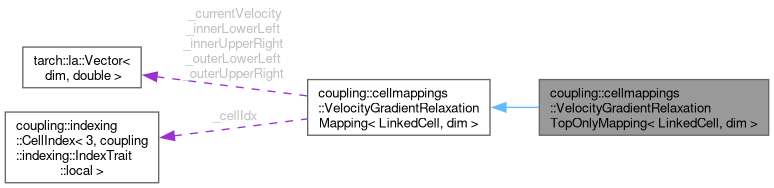

Collaboration diagram for coupling::cellmappings::VelocityGradientRelaxationTopOnlyMapping< LinkedCell, dim >:

[legend]

Public Member Functions
	VelocityGradientRelaxationTopOnlyMapping (const double &velocityRelaxationFactor, const tarch::la::Vector< dim, double > &currentVelocity, const I02 &cellIndex, coupling::interface::MDSolverInterface< LinkedCell, dim > const mdSolverInterface, const coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > const couplingCells)

Public Member Functions inherited from coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >
	VelocityGradientRelaxationMapping (const double &velocityRelaxationFactor, const tarch::la::Vector< dim, double > &currentVelocity, const I02 &cellIndex, coupling::interface::MDSolverInterface< LinkedCell, dim > const mdSolverInterface, const coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > const couplingCells)

virtual	~VelocityGradientRelaxationMapping ()

void	beginCellIteration ()

void	endCellIteration ()

void	handleCell (LinkedCell &cell)

Protected Member Functions
virtual bool	relaxMolecule (const tarch::la::Vector< dim, double > &position) const

Protected Member Functions inherited from coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >
bool	ignoreThisCell (const I02 &idx) const

Additional Inherited Members
Protected Attributes inherited from coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >
coupling::interface::MDSolverInterface< LinkedCell, dim > *const	_mdSolverInterface

const coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > *const	_couplingCells

const double	_velocityRelaxationFactor

const tarch::la::Vector< dim, double >	_currentVelocity

const tarch::la::Vector< dim, double >	_innerLowerLeft

const tarch::la::Vector< dim, double >	_innerUpperRight

const tarch::la::Vector< dim, double >	_outerLowerLeft

const tarch::la::Vector< dim, double >	_outerUpperRight

I02	_cellIdx

bool	_ignoreThisCell

Detailed Description

template<class LinkedCell, unsigned int dim>
class coupling::cellmappings::VelocityGradientRelaxationTopOnlyMapping< LinkedCell, dim >

This is the same as the class coupling::cellmappings::VelocityGradientRelaxationMapping, but relaxes only those molecules which are located in the top boundary strip.

This is the same as the class coupling::cellmappings::VelocityGradientRelaxationMapping, but relaxes only those molecules which are located in the top boundary strip. derived from the class coupling::cellmappings::VelocityGradientRelaxationMapping.

Template Parameters

LinkedCell	cell type
dim	Number of dimensions; it can be 1, 2 or 3

Author: Philipp Neumann

Note: ONLY SUPPORTS 3D AT THE MOMENT!

Todo: Philipp please take a look on this class

Constructor & Destructor Documentation

◆ VelocityGradientRelaxationTopOnlyMapping()

template<class LinkedCell, unsigned int dim>

coupling::cellmappings::VelocityGradientRelaxationTopOnlyMapping< LinkedCell, dim >::VelocityGradientRelaxationTopOnlyMapping	(	const double &	velocityRelaxationFactor,
		const tarch::la::Vector< dim, double > &	currentVelocity,
		const I02 &	cellIndex,
		coupling::interface::MDSolverInterface< LinkedCell, dim > *const	mdSolverInterface,
		const coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > *const	couplingCells )

inline

obtains relaxation factor and current velocity (the velocity towards which the relaxation shall be done is later obtained from the microscopicmomentum-buffers).

Parameters

velocityRelaxationFactor
currentVelocity
cellIndex
mdSolverInterface
couplingCells

Note: the method ignoreThisCell() of the class coupling::cellmappings::VelocityGradientRelaxationMapping is replaceed. Since this function is called in the constructor of the based class, we cannot overwrite it; hence, we solve it by overwriting the respective variable from within this constructor (called after base object is constructed)

Member Function Documentation

◆ relaxMolecule()

template<class LinkedCell, unsigned int dim>

virtual bool coupling::cellmappings::VelocityGradientRelaxationTopOnlyMapping< LinkedCell, dim >::relaxMolecule ( const tarch::la::Vector< dim, double > & position ) const

inlineprotectedvirtual

returns true, if the position 'position' is within the respective boundary strip that is spanned by the two outermost coupling cell midpoints

Parameters

position

Returns: true, if the position 'position' is within the respective boundary strip that is spanned by the two outermost coupling cell midpoints

Reimplemented from coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >.

The documentation for this class was generated from the following file:

coupling/cell-mappings/VelocityGradientRelaxationMapping.h
