This class relaxes velocities of molecules towards an interpolated avergaged velocity value. More...

#include <VelocityGradientRelaxationMapping.h>

Inheritance diagram for coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >:

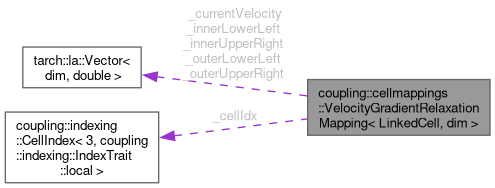

Collaboration diagram for coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >:

[legend]

Public Member Functions
	VelocityGradientRelaxationMapping (const double &velocityRelaxationFactor, const tarch::la::Vector< dim, double > &currentVelocity, const I02 &cellIndex, coupling::interface::MDSolverInterface< LinkedCell, dim > const mdSolverInterface, const coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > const couplingCells)

virtual	~VelocityGradientRelaxationMapping ()

void	beginCellIteration ()

void	endCellIteration ()

void	handleCell (LinkedCell &cell)

Protected Member Functions
virtual bool	relaxMolecule (const tarch::la::Vector< dim, double > &position) const

bool	ignoreThisCell (const I02 &idx) const

Protected Attributes
coupling::interface::MDSolverInterface< LinkedCell, dim > *const	_mdSolverInterface

const coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > *const	_couplingCells

const double	_velocityRelaxationFactor

const tarch::la::Vector< dim, double >	_currentVelocity

const tarch::la::Vector< dim, double >	_innerLowerLeft

const tarch::la::Vector< dim, double >	_innerUpperRight

const tarch::la::Vector< dim, double >	_outerLowerLeft

const tarch::la::Vector< dim, double >	_outerUpperRight

I02	_cellIdx

bool	_ignoreThisCell

Private Member Functions
tarch::la::Vector< dim, double >	getInnerLowerLeftCorner () const

tarch::la::Vector< dim, double >	getInnerUpperRightCorner () const

tarch::la::Vector< dim, double >	getOuterLowerLeftCorner () const

tarch::la::Vector< dim, double >	getOuterUpperRightCorner () const

void	createCouplingCellIndex4SecondOrderInterpolation (const tarch::la::Vector< dim, double > &position, tarch::la::Vector< dim, double > &normalisedPosition, bool &secondCake, I02 *res) const

void	interpolateVelocitySecondOrder (I02 *cellIndex, const tarch::la::Vector< dim, double > &normalisedPosition, const bool &secondCake, tarch::la::Vector< dim, double > &newVelocity) const

Detailed Description

template<class LinkedCell, unsigned int dim>
class coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >

This class relaxes velocities of molecules towards an interpolated avergaged velocity value.

This class relaxes velocities of molecules towards an interpolated avergaged velocity value. Only molecules within a three cell-wide boundary strip are considered if they are inside the one cell-wide boundary strip that is spanned by the outermost non-ghost coupling cell midpoints. Currently, a second-order interpolation of the molecules in the outer boundary strip is used (that is the first layer with three coupling cells needs to be initialised with valid LB velocities).

Template Parameters

LinkedCell	cell type
dim	Number of dimensions; it can be 1, 2 or 3

Author: Philipp Neumann

Note: ONLY SUPPORTS 3D AT THE MOMENT!

Todo: Philipp please take a look on this class

Constructor & Destructor Documentation

◆ VelocityGradientRelaxationMapping()

template<class LinkedCell, unsigned int dim>

coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::VelocityGradientRelaxationMapping	(	const double &	velocityRelaxationFactor,
		const tarch::la::Vector< dim, double > &	currentVelocity,
		const I02 &	cellIndex,
		coupling::interface::MDSolverInterface< LinkedCell, dim > *const	mdSolverInterface,
		const coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > *const	couplingCells )

inline

obtains relaxation factor and current velocity (the velocity towards which the relaxation shall be done is later obtained from the microscopicmomentum-buffers).

Parameters

velocityRelaxationFactor
currentVelocity
cellIndex
mdSolverInterface
couplingCells

◆ ~VelocityGradientRelaxationMapping()

template<class LinkedCell, unsigned int dim>

virtual coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::~VelocityGradientRelaxationMapping ( )

inlinevirtual

Destructor

Member Function Documentation

◆ beginCellIteration()

template<class LinkedCell, unsigned int dim>

void coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::beginCellIteration ( )

inline

empty function

◆ createCouplingCellIndex4SecondOrderInterpolation()

template<class LinkedCell, unsigned int dim>

void coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::createCouplingCellIndex4SecondOrderInterpolation	(	const tarch::la::Vector< dim, double > &	position,
		tarch::la::Vector< dim, double > &	normalisedPosition,
		bool &	secondCake,
		I02 *	res ) const

inlineprivate

creates a coupling cell index for the second order interpolation.

Parameters

position
normalisedPosition
secondCake
res

◆ endCellIteration()

template<class LinkedCell, unsigned int dim>

void coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::endCellIteration ( )

inline

empty function

◆ getInnerLowerLeftCorner()

template<class LinkedCell, unsigned int dim>

tarch::la::Vector< dim, double > coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::getInnerLowerLeftCorner ( ) const

inlineprivate

Returns: the inner lower left corner of the cell

◆ getInnerUpperRightCorner()

template<class LinkedCell, unsigned int dim>

tarch::la::Vector< dim, double > coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::getInnerUpperRightCorner ( ) const

inlineprivate

Returns: the inner upper right corner of the cell

◆ getOuterLowerLeftCorner()

template<class LinkedCell, unsigned int dim>

tarch::la::Vector< dim, double > coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::getOuterLowerLeftCorner ( ) const

inlineprivate

Returns: the outer lower left corner of the cell

◆ getOuterUpperRightCorner()

template<class LinkedCell, unsigned int dim>

tarch::la::Vector< dim, double > coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::getOuterUpperRightCorner ( ) const

inlineprivate

Returns: the outer upper right corner of the cell

◆ handleCell()

template<class LinkedCell, unsigned int dim>

void coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::handleCell ( LinkedCell & cell )

inline

computes the current velocity directly from coupling cell and the new velocity (microscopicMomentum) with second-order interpolation multiplies the difference between the two with the velocity relaxation factor add it to the velocity of the molecule and applies it to the molecule.

Parameters

cell

◆ ignoreThisCell()

template<class LinkedCell, unsigned int dim>

bool coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::ignoreThisCell ( const I02 & idx ) const

inlineprotected

Parameters

idx

Returns: true if all molecules in this coupling cell do not require any velocity relaxation (-> used to speed up the code)

◆ interpolateVelocitySecondOrder()

template<class LinkedCell, unsigned int dim>

void coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::interpolateVelocitySecondOrder	(	I02 *	cellIndex,
		const tarch::la::Vector< dim, double > &	normalisedPosition,
		const bool &	secondCake,
		tarch::la::Vector< dim, double > &	newVelocity ) const

inlineprivate

carries out second order interpolation of the velocity value (microscopicmomentum-buffer) at position 'position'

Parameters

cellIndex
normalisedPosition
secondCake
newVelocity

◆ relaxMolecule()

template<class LinkedCell, unsigned int dim>

virtual bool coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::relaxMolecule ( const tarch::la::Vector< dim, double > & position ) const

inlineprotectedvirtual

Parameters

position

Returns: true, if the position 'position' is within the respective boundary strip that is spanned by the two outermost coupling cell midpoints

Reimplemented in coupling::cellmappings::VelocityGradientRelaxationTopOnlyMapping< LinkedCell, dim >.

Member Data Documentation

◆ _currentVelocity

template<class LinkedCell, unsigned int dim>

const tarch::la::Vector<dim, double> coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::_currentVelocity

protected

current velocity in this coupling cell

◆ _ignoreThisCell

template<class LinkedCell, unsigned int dim>

bool coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::_ignoreThisCell

protected

true, if all molecules in this cell do not require any velocity relaxation

◆ _innerLowerLeft

template<class LinkedCell, unsigned int dim>

const tarch::la::Vector<dim, double> coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::_innerLowerLeft

protected

boundary points of the boundary strip under consideration

◆ _velocityRelaxationFactor

template<class LinkedCell, unsigned int dim>

const double coupling::cellmappings::VelocityGradientRelaxationMapping< LinkedCell, dim >::_velocityRelaxationFactor

protected

relaxation factor for velocity relaxation

The documentation for this class was generated from the following file:

coupling/cell-mappings/VelocityGradientRelaxationMapping.h
