#include <TransferStrategy4NieCoupling.h>

Inheritance diagram for coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >:

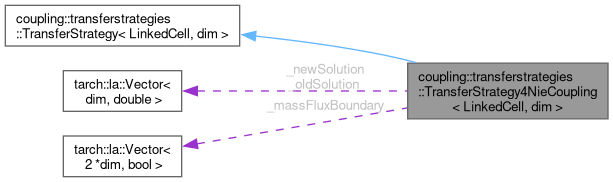

Collaboration diagram for coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >:

[legend]

Public Member Functions
	TransferStrategy4NieCoupling (coupling::interface::MDSolverInterface< LinkedCell, dim > const mdSolverInterface, unsigned int numberMDSteps, double shiftTimestep, tarch::la::Vector< 2 dim, bool > massFluxBoundary)
	a simple

virtual	~TransferStrategy4NieCoupling ()
	a dummy destructor

void	beginProcessInnerCouplingCellsBeforeReceivingMacroscopicSolverData () override
	stores the old cont.-velocity field solution and resets time step counter

void	processInnerCouplingCellBeforeReceivingMacroscopicSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index) override
	store old microscopic mass in excess-mass buffer and reset microscopic mass buffer

void	processInnerCouplingCellAfterReceivingMacroscopicSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index) override
	converts momentum into velocity values;

void	processInnerCouplingCellBeforeSendingMDSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index) override
	divides accumulated mass and momentum values by time step counter.

void	beginProcessInnerCouplingCellsAfterMDTimestep () override
	increments time step counter

void	processInnerCouplingCellAfterMDTimestep (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index) override
	computes current velocity (linear time interpolation) in this cell and accumulates mass/momentum for sampling

Public Member Functions inherited from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >
	TransferStrategy (coupling::interface::MDSolverInterface< LinkedCell, dim > *const mdSolverInterface)
	a simple destructor

virtual	~TransferStrategy ()
	a dummy destructor

virtual void	endProcessInnerCouplingCellsBeforeReceivingMacroscopicSolverData ()
	the method is called after the cells are processed, e.g. some general evaluation might happen like sum/counter

virtual void	processOuterCouplingCellBeforeReceivingMacroscopicSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index)
	is called on the outer coupling cells before the data from the macro solver is applied

virtual void	beginProcessOuterCouplingCellsBeforeReceivingMacroscopicSolverData ()
	the method is called before the outer cells are processed, e.g. general values might be set here

virtual void	endProcessOuterCouplingCellsBeforeReceivingMacroscopicSolverData ()
	the method is called after the outer cells are processed, e.g. general values might be set here

virtual void	beginProcessInnerCouplingCellsAfterReceivingMacroscopicSolverData ()
	the method is called before the inner cells are processed, e.g. general values might be set here

virtual void	endProcessInnerCouplingCellsAfterReceivingMacroscopicSolverData ()
	the method is called after the inner cells are processed, e.g. general values might be set here

virtual void	processOuterCouplingCellAfterReceivingMacroscopicSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index)
	is called for every coupling cell after the microscopicMass and -Momentum have been filled in with data from the macroscopic solver.

virtual void	beginProcessOuterCouplingCellsAfterReceivingMacroscopicSolverData ()
	the method is called before the outer cells are processed, e.g. general values might be set here

virtual void	endProcessOuterCouplingCellsAfterReceivingMacroscopicSolverData ()
	the method is called after the outer cells are processed, e.g. general values might be set here

virtual void	beginProcessInnerCouplingCellsBeforeSendingMDSolverData ()
	the method is called before the inner cell data is send, e.g. general values might be set here

virtual void	endProcessInnerCouplingCellsBeforeSendingMDSolverData ()
	the method is called after the inner cell data is send, e.g. general values might be set here

virtual void	processOuterCouplingCellBeforeSendingMDSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index)
	is called for outer coupling cell before sending the macroscopicMass and -Momentum data to the macroscopic solver and before noise reduction invocation.

virtual void	beginProcessOuterCouplingCellsBeforeSendingMDSolverData ()
	the method is called before the outer cells are processed, e.g. general values might be set here

virtual void	endProcessOuterCouplingCellsBeforeSendingMDSolverData ()
	the method is called after the outer cells are processed, e.g. general values might be set here

virtual void	endProcessInnerCouplingCellsAfterMDTimestep ()
	the method is called after the inner cell data is send, e.g. general values might be set here

Private Member Functions
double	computeMassFlux (const double &mass, const tarch::la::Vector< dim, double > &velocity, I01 index)

Private Attributes
coupling::cellmappings::ComputeMassMapping< LinkedCell, dim >	_massMapping

coupling::cellmappings::ComputeMomentumMapping< LinkedCell, dim >	_momentumMapping

tarch::la::Vector< dim, double > *	_oldSolution

tarch::la::Vector< dim, double > *	_newSolution

const unsigned int	_numberMDSteps

const double	_shiftTimestep

const unsigned int	_numberLocalCells

unsigned int	_timestepCounter

double *	_excessMass

const tarch::la::Vector< 2 *dim, bool >	_massFluxBoundary

Additional Inherited Members
Protected Attributes inherited from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >
coupling::interface::MDSolverInterface< LinkedCell, dim > *const	_mdSolverInterface

Detailed Description

template<class LinkedCell, unsigned int dim>
class coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >

transfer strategy for Nie coupling algorithm, adopted from: X.B. Nie, S.Y. Chen, W.N. E, M.O. Robbins A continuum and molecular dynamics hybrid method for micro- and nano-fluid flow J. Fluid. Mech. 500: 55-64, 2004 We basically sample in every MD time step.

Author: Philipp Neumann

Template Parameters

LinkedCell	the LinkedCell class is given by the implementation of linked cells in the molecular dynamics simulation
dim	refers to the spacial dimension of the simulation, can be 1, 2, or 3

Constructor & Destructor Documentation

◆ TransferStrategy4NieCoupling()

template<class LinkedCell, unsigned int dim>

coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::TransferStrategy4NieCoupling	(	coupling::interface::MDSolverInterface< LinkedCell, dim > *const	mdSolverInterface,
		unsigned int	numberMDSteps,
		double	shiftTimestep,
		tarch::la::Vector< 2 *dim, bool >	massFluxBoundary )

a simple

Parameters

mdSolverInterface	interface for the md solver
shiftTimestep	parameter for the inter- and extrapolation of the time steps refers to the Nie algorithm
massFluxBoundary	indicates at which boundary mass shall be transferred (true) or not (false); in their order the entries refer to: west, east, south, north, bottom, top boundary

Member Function Documentation

◆ beginProcessInnerCouplingCellsAfterMDTimestep()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::beginProcessInnerCouplingCellsAfterMDTimestep ( )

overridevirtual

increments time step counter

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

◆ beginProcessInnerCouplingCellsBeforeReceivingMacroscopicSolverData()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::beginProcessInnerCouplingCellsBeforeReceivingMacroscopicSolverData ( )

overridevirtual

stores the old cont.-velocity field solution and resets time step counter

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

◆ computeMassFlux()

template<class LinkedCell, unsigned int dim>

double coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::computeMassFlux	(	const double &	mass,
		const tarch::la::Vector< dim, double > &	velocity,
		I01	index )

private

computes the mass flux in the outermost inner coupling cells. For all other cells, 0.0 is returned.

◆ processInnerCouplingCellAfterMDTimestep()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::processInnerCouplingCellAfterMDTimestep	(	coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &	cell,
		I02	index )

overridevirtual

computes current velocity (linear time interpolation) in this cell and accumulates mass/momentum for sampling

Parameters

cell	the coupling cell to be processed
index	the index of the coupling cell

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

◆ processInnerCouplingCellAfterReceivingMacroscopicSolverData()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::processInnerCouplingCellAfterReceivingMacroscopicSolverData	(	coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &	cell,
		I02	index )

overridevirtual

converts momentum into velocity values;

stores velocity values in new cont.-velocity field solution and sets correct velocity value for first MD time step in microscopic momentum buffer.

Parameters

cell	the coupling cell to be processed
index	the index of the coupling cell

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

◆ processInnerCouplingCellBeforeReceivingMacroscopicSolverData()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::processInnerCouplingCellBeforeReceivingMacroscopicSolverData	(	coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &	cell,
		I02	index )

overridevirtual

store old microscopic mass in excess-mass buffer and reset microscopic mass buffer

Parameters

cell	the coupling cell to be processed
index	the index of the coupling cell

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

◆ processInnerCouplingCellBeforeSendingMDSolverData()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::processInnerCouplingCellBeforeSendingMDSolverData	(	coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &	cell,
		I02	index )

overridevirtual

divides accumulated mass and momentum values by time step counter.

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

Member Data Documentation

◆ _excessMass

template<class LinkedCell, unsigned int dim>

double* coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::_excessMass

private

mass that was transferred in an earlier coupled step

◆ _massFluxBoundary

template<class LinkedCell, unsigned int dim>

const tarch::la::Vector<2 * dim, bool> coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::_massFluxBoundary

private

true in each entry if west/east, south/north, bottom/top boundary is a mass flux boundary

◆ _massMapping

template<class LinkedCell, unsigned int dim>

coupling::cellmappings::ComputeMassMapping<LinkedCell, dim> coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::_massMapping

private

class to compute the amount of mass in every single cell

◆ _momentumMapping

template<class LinkedCell, unsigned int dim>

coupling::cellmappings::ComputeMomentumMapping<LinkedCell, dim> coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::_momentumMapping

private

class to compute the amount of momentum in every single cell

◆ _newSolution

template<class LinkedCell, unsigned int dim>

tarch::la::Vector<dim, double>* coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::_newSolution

private

solution of velocity field at the end of coupling cycle

◆ _numberLocalCells

template<class LinkedCell, unsigned int dim>

const unsigned int coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::_numberLocalCells

private

local number of cells (incl. ghost layers)

◆ _numberMDSteps

template<class LinkedCell, unsigned int dim>

const unsigned int coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::_numberMDSteps

private

number of MD time steps per coupling cycle

◆ _oldSolution

template<class LinkedCell, unsigned int dim>

tarch::la::Vector<dim, double>* coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::_oldSolution

private

solution of velocity field at the beginning of coupling cycle (=end of old coupling cycle)

◆ _shiftTimestep

template<class LinkedCell, unsigned int dim>

const double coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::_shiftTimestep

private

offset by which evaluation of time interval is shifted compared to continuum solver. A value of zero implies interpolation between new and old solution, corresponding to a time interval t->t+dt. A value of one implies extrapolation between the times t+dt (newSolution) and t+2dt using oldSolution and newSolution. All inter-/extrapolations are linear.

◆ _timestepCounter

template<class LinkedCell, unsigned int dim>

unsigned int coupling::transferstrategies::TransferStrategy4NieCoupling< LinkedCell, dim >::_timestepCounter

private

time step counter within a coupling cycle (should run from 0 to _numberMDSteps)

The documentation for this class was generated from the following file:

coupling/transferstrategies/TransferStrategy4NieCoupling.h
