#include <DifferenceTransferStrategy.h>

Inheritance diagram for coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >:

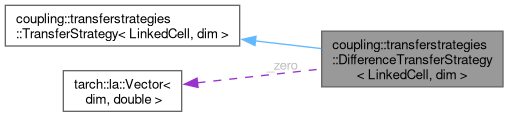

Collaboration diagram for coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >:

[legend]

Public Member Functions
	DifferenceTransferStrategy (coupling::interface::MDSolverInterface< LinkedCell, dim > *const mdSolverInterface, unsigned int numberMDsteps)
	a simple constructor

virtual	~DifferenceTransferStrategy ()
	a dummy destructor

void	processInnerCouplingCellBeforeReceivingMacroscopicSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index) override

void	processOuterCouplingCellBeforeReceivingMacroscopicSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index) override
	the microscopicMass and -Momentum are reseted to zero

void	processInnerCouplingCellAfterReceivingMacroscopicSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index) override
	difference between microscopic and macroscopic values is evaluated and stored in the macroscopic quantity

void	processInnerCouplingCellBeforeSendingMDSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index) override
	the quantities (mass & momentum) are averaged (divided by the amount of md time steps)

void	processInnerCouplingCellAfterMDTimestep (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index) override
	compute current mass and momentum and add it to averaged buffer value

Public Member Functions inherited from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >
	TransferStrategy (coupling::interface::MDSolverInterface< LinkedCell, dim > *const mdSolverInterface)
	a simple destructor

virtual	~TransferStrategy ()
	a dummy destructor

virtual void	beginProcessInnerCouplingCellsBeforeReceivingMacroscopicSolverData ()
	the method is called before the cells are processed, e.g. general values might be set here

virtual void	endProcessInnerCouplingCellsBeforeReceivingMacroscopicSolverData ()
	the method is called after the cells are processed, e.g. some general evaluation might happen like sum/counter

virtual void	beginProcessOuterCouplingCellsBeforeReceivingMacroscopicSolverData ()
	the method is called before the outer cells are processed, e.g. general values might be set here

virtual void	endProcessOuterCouplingCellsBeforeReceivingMacroscopicSolverData ()
	the method is called after the outer cells are processed, e.g. general values might be set here

virtual void	beginProcessInnerCouplingCellsAfterReceivingMacroscopicSolverData ()
	the method is called before the inner cells are processed, e.g. general values might be set here

virtual void	endProcessInnerCouplingCellsAfterReceivingMacroscopicSolverData ()
	the method is called after the inner cells are processed, e.g. general values might be set here

virtual void	processOuterCouplingCellAfterReceivingMacroscopicSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index)
	is called for every coupling cell after the microscopicMass and -Momentum have been filled in with data from the macroscopic solver.

virtual void	beginProcessOuterCouplingCellsAfterReceivingMacroscopicSolverData ()
	the method is called before the outer cells are processed, e.g. general values might be set here

virtual void	endProcessOuterCouplingCellsAfterReceivingMacroscopicSolverData ()
	the method is called after the outer cells are processed, e.g. general values might be set here

virtual void	beginProcessInnerCouplingCellsBeforeSendingMDSolverData ()
	the method is called before the inner cell data is send, e.g. general values might be set here

virtual void	endProcessInnerCouplingCellsBeforeSendingMDSolverData ()
	the method is called after the inner cell data is send, e.g. general values might be set here

virtual void	processOuterCouplingCellBeforeSendingMDSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index)
	is called for outer coupling cell before sending the macroscopicMass and -Momentum data to the macroscopic solver and before noise reduction invocation.

virtual void	beginProcessOuterCouplingCellsBeforeSendingMDSolverData ()
	the method is called before the outer cells are processed, e.g. general values might be set here

virtual void	endProcessOuterCouplingCellsBeforeSendingMDSolverData ()
	the method is called after the outer cells are processed, e.g. general values might be set here

virtual void	beginProcessInnerCouplingCellsAfterMDTimestep ()
	the method is called before the inner cell data is send, e.g. general values might be set here

virtual void	endProcessInnerCouplingCellsAfterMDTimestep ()
	the method is called after the inner cell data is send, e.g. general values might be set here

Private Attributes
const unsigned int	_numberMDsteps

const tarch::la::Vector< dim, double >	_zero

coupling::cellmappings::ComputeMassMapping< LinkedCell, dim >	_massMapping

coupling::cellmappings::ComputeMomentumMapping< LinkedCell, dim >	_momentumMapping

Additional Inherited Members
Protected Attributes inherited from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >
coupling::interface::MDSolverInterface< LinkedCell, dim > *const	_mdSolverInterface

Detailed Description

template<class LinkedCell, unsigned int dim>
class coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >

from MD to macroscopic solver: mass and momentum are computed at the current timestep and mapped to macroscopic solver. The values are averaged over a certain time. from macroscopic solver to MD: The difference in mass and momentum between both solvers is computed and introduced on MD side.

Author: Philipp Neumann

Template Parameters

LinkedCell	the LinkedCell class is given by the implementation of linked cells in the molecular dynamics simulation
dim	refers to the spacial dimension of the simulation, can be 1, 2, or 3

Constructor & Destructor Documentation

◆ DifferenceTransferStrategy()

template<class LinkedCell, unsigned int dim>

coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >::DifferenceTransferStrategy	(	coupling::interface::MDSolverInterface< LinkedCell, dim > *const	mdSolverInterface,
		unsigned int	numberMDsteps )

inline

a simple constructor

Parameters

mdSolverInterface	interface for the md solver
numberMDSteps	number of md steps within one coupling time step

Member Function Documentation

◆ processInnerCouplingCellAfterMDTimestep()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >::processInnerCouplingCellAfterMDTimestep	(	coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &	cell,
		I02	index )

inlineoverridevirtual

compute current mass and momentum and add it to averaged buffer value

Parameters

cell	coupling cell to process
index	index of the coupling cell

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

◆ processInnerCouplingCellAfterReceivingMacroscopicSolverData()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >::processInnerCouplingCellAfterReceivingMacroscopicSolverData	(	coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &	cell,
		I02	index )

inlineoverridevirtual

difference between microscopic and macroscopic values is evaluated and stored in the macroscopic quantity

Parameters

cell	coupling cell to process
index	index of the coupling cell

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

◆ processInnerCouplingCellBeforeReceivingMacroscopicSolverData()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >::processInnerCouplingCellBeforeReceivingMacroscopicSolverData	(	coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &	cell,
		I02	index )

inlineoverridevirtual

Parameters

cell	coupling cell to process
index	index of the coupling cell

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

◆ processInnerCouplingCellBeforeSendingMDSolverData()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >::processInnerCouplingCellBeforeSendingMDSolverData	(	coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &	cell,
		I02	index )

inlineoverridevirtual

the quantities (mass & momentum) are averaged (divided by the amount of md time steps)

Parameters

cell	coupling cell to process
index	index of the coupling cell

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

◆ processOuterCouplingCellBeforeReceivingMacroscopicSolverData()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >::processOuterCouplingCellBeforeReceivingMacroscopicSolverData	(	coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &	cell,
		I02	index )

inlineoverridevirtual

the microscopicMass and -Momentum are reseted to zero

Parameters

cell	coupling cell to process
index	index of the coupling cell

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

Member Data Documentation

◆ _massMapping

template<class LinkedCell, unsigned int dim>

coupling::cellmappings::ComputeMassMapping<LinkedCell, dim> coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >::_massMapping

private

class to compute the mass within every single cell

◆ _momentumMapping

template<class LinkedCell, unsigned int dim>

coupling::cellmappings::ComputeMomentumMapping<LinkedCell, dim> coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >::_momentumMapping

private

class to compute the momentum within every single cell

◆ _numberMDsteps

template<class LinkedCell, unsigned int dim>

const unsigned int coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >::_numberMDsteps

private

number of md time steps within one coupling time step

◆ _zero

template<class LinkedCell, unsigned int dim>

const tarch::la::Vector<dim, double> coupling::transferstrategies::DifferenceTransferStrategy< LinkedCell, dim >::_zero

private

vector containing zeros, the dimension is the spacial dimension of the simulation

The documentation for this class was generated from the following file:

coupling/transferstrategies/DifferenceTransferStrategy.h
