#include <AveragingTransferStrategy.h>

Inheritance diagram for coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >:

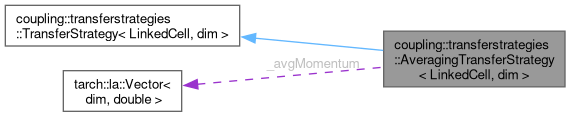

Collaboration diagram for coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >:

[legend]

Public Member Functions
	AveragingTransferStrategy (coupling::interface::MDSolverInterface< LinkedCell, dim > *const mdSolverInterface)
	a simple constructor

virtual	~AveragingTransferStrategy ()
	a dummy destructor

void	beginProcessInnerCouplingCellsBeforeReceivingMacroscopicSolverData () override
	reset the sample counter before processing any cell

void	processInnerCouplingCellBeforeReceivingMacroscopicSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index) override
	macroscopicMass and -Momentum are reset before the data from the macro solver is transferred

void	beginProcessInnerCouplingCellsAfterMDTimestep () override
	values are reseted before the cells are processes and on rank=0 info is written to the stdstream

void	processInnerCouplingCellAfterMDTimestep (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index) override
	the averaging operation is applied to the cell

Public Member Functions inherited from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >
	TransferStrategy (coupling::interface::MDSolverInterface< LinkedCell, dim > *const mdSolverInterface)
	a simple destructor

virtual	~TransferStrategy ()
	a dummy destructor

virtual void	endProcessInnerCouplingCellsBeforeReceivingMacroscopicSolverData ()
	the method is called after the cells are processed, e.g. some general evaluation might happen like sum/counter

virtual void	processOuterCouplingCellBeforeReceivingMacroscopicSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index)
	is called on the outer coupling cells before the data from the macro solver is applied

virtual void	beginProcessOuterCouplingCellsBeforeReceivingMacroscopicSolverData ()
	the method is called before the outer cells are processed, e.g. general values might be set here

virtual void	endProcessOuterCouplingCellsBeforeReceivingMacroscopicSolverData ()
	the method is called after the outer cells are processed, e.g. general values might be set here

virtual void	processInnerCouplingCellAfterReceivingMacroscopicSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index)

virtual void	beginProcessInnerCouplingCellsAfterReceivingMacroscopicSolverData ()
	the method is called before the inner cells are processed, e.g. general values might be set here

virtual void	endProcessInnerCouplingCellsAfterReceivingMacroscopicSolverData ()
	the method is called after the inner cells are processed, e.g. general values might be set here

virtual void	processOuterCouplingCellAfterReceivingMacroscopicSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index)
	is called for every coupling cell after the microscopicMass and -Momentum have been filled in with data from the macroscopic solver.

virtual void	beginProcessOuterCouplingCellsAfterReceivingMacroscopicSolverData ()
	the method is called before the outer cells are processed, e.g. general values might be set here

virtual void	endProcessOuterCouplingCellsAfterReceivingMacroscopicSolverData ()
	the method is called after the outer cells are processed, e.g. general values might be set here

virtual void	processInnerCouplingCellBeforeSendingMDSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index)
	is called for every coupling cell before sending the macroscopicMass and -Momentum data to the macroscopic solver and before noise reduction invocation.

virtual void	beginProcessInnerCouplingCellsBeforeSendingMDSolverData ()
	the method is called before the inner cell data is send, e.g. general values might be set here

virtual void	endProcessInnerCouplingCellsBeforeSendingMDSolverData ()
	the method is called after the inner cell data is send, e.g. general values might be set here

virtual void	processOuterCouplingCellBeforeSendingMDSolverData (coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &cell, I02 index)
	is called for outer coupling cell before sending the macroscopicMass and -Momentum data to the macroscopic solver and before noise reduction invocation.

virtual void	beginProcessOuterCouplingCellsBeforeSendingMDSolverData ()
	the method is called before the outer cells are processed, e.g. general values might be set here

virtual void	endProcessOuterCouplingCellsBeforeSendingMDSolverData ()
	the method is called after the outer cells are processed, e.g. general values might be set here

virtual void	endProcessInnerCouplingCellsAfterMDTimestep ()
	the method is called after the inner cell data is send, e.g. general values might be set here

Private Attributes
coupling::cellmappings::ComputeMassMapping< LinkedCell, dim >	_massMapping

coupling::cellmappings::ComputeMomentumMapping< LinkedCell, dim >	_momentumMapping

unsigned int	_sampleCounter

const unsigned int	_rank

tarch::la::Vector< dim, double >	_avgMomentum

double	_avgMass

Additional Inherited Members
Protected Attributes inherited from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >
coupling::interface::MDSolverInterface< LinkedCell, dim > *const	_mdSolverInterface

Detailed Description

template<class LinkedCell, unsigned int dim>
class coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >

this class is used for pure averaging operations on the coupling cells. This can be used e.g. to measure errors in averaging over time, to estimate number of samples etc.

Author: Philipp Neumann

Template Parameters

LinkedCell	the LinkedCell class is given by the implementation of linked cells in the molecular dynamics simulation
dim	refers to the spacial dimension of the simulation, can be 1, 2, or 3

Constructor & Destructor Documentation

◆ AveragingTransferStrategy()

template<class LinkedCell, unsigned int dim>

coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >::AveragingTransferStrategy ( coupling::interface::MDSolverInterface< LinkedCell, dim > *const mdSolverInterface )

inline

a simple constructor

Parameters

mdSolverInterface interface for the md solver

Member Function Documentation

◆ beginProcessInnerCouplingCellsAfterMDTimestep()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >::beginProcessInnerCouplingCellsAfterMDTimestep ( )

inlineoverridevirtual

values are reseted before the cells are processes and on rank=0 info is written to the stdstream

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

◆ beginProcessInnerCouplingCellsBeforeReceivingMacroscopicSolverData()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >::beginProcessInnerCouplingCellsBeforeReceivingMacroscopicSolverData ( )

inlineoverridevirtual

reset the sample counter before processing any cell

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

◆ processInnerCouplingCellAfterMDTimestep()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >::processInnerCouplingCellAfterMDTimestep	(	coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &	cell,
		I02	index )

inlineoverridevirtual

the averaging operation is applied to the cell

the macroscopicMass and -Momentum are averaged over all md time steps

Parameters

cell	the coupling cell to process
index	the index of the coupling cell

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

◆ processInnerCouplingCellBeforeReceivingMacroscopicSolverData()

template<class LinkedCell, unsigned int dim>

void coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >::processInnerCouplingCellBeforeReceivingMacroscopicSolverData	(	coupling::datastructures::CouplingCellWithLinkedCells< LinkedCell, dim > &	cell,
		I02	index )

inlineoverridevirtual

macroscopicMass and -Momentum are reset before the data from the macro solver is transferred

Parameters

cell	the coupling cell to process
index	the index of the coupling cell

Reimplemented from coupling::transferstrategies::TransferStrategy< LinkedCell, dim >.

Member Data Documentation

◆ _avgMass

template<class LinkedCell, unsigned int dim>

double coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >::_avgMass

private

the mass of every cell is summed in this variable and divided by the _sampleCounter so it holds the average mass in the end

◆ _avgMomentum

template<class LinkedCell, unsigned int dim>

tarch::la::Vector<dim, double> coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >::_avgMomentum

private

the momentum of every cell is summed in this variable and divided by the _sampleCounter so it holds the average momentum in the end

◆ _massMapping

template<class LinkedCell, unsigned int dim>

coupling::cellmappings::ComputeMassMapping<LinkedCell, dim> coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >::_massMapping

private

necessary to compute the mass in the cells

◆ _momentumMapping

template<class LinkedCell, unsigned int dim>

coupling::cellmappings::ComputeMomentumMapping<LinkedCell, dim> coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >::_momentumMapping

private

necessary to compute the current momentum in the cell

◆ _rank

template<class LinkedCell, unsigned int dim>

const unsigned int coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >::_rank

private

rank of the mpi process

◆ _sampleCounter

template<class LinkedCell, unsigned int dim>

unsigned int coupling::transferstrategies::AveragingTransferStrategy< LinkedCell, dim >::_sampleCounter

private

counter for the samples

The documentation for this class was generated from the following file:

coupling/transferstrategies/AveragingTransferStrategy.h
