#include <ParallelTimeIntegrationService.h>

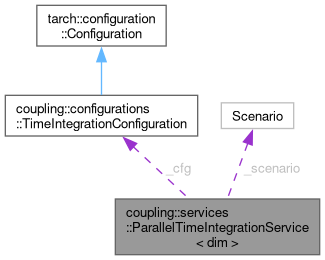

Collaboration diagram for coupling::services::ParallelTimeIntegrationService< dim >:

[legend]

Classes
struct	PintDomain

Public Types
using	State = coupling::interface::PintableMacroSolverState

using	Solver = coupling::interface::PintableMacroSolver

Public Member Functions
	ParallelTimeIntegrationService (coupling::configurations::MaMiCoConfiguration< dim > mamicoConfig, Scenario *scenario)

void	run (int num_cycles)

int	getPintDomain () const

int	getRank () const

bool	isPintEnabled () const

int	getInteration () const

MPI_Comm	getPintComm () const

Private Member Functions
void	run_cycles (int start, int end)

bool	isFirst () const

bool	isLast () const

PintDomain	setup_domain (int num_cycles) const

void	setup_solvers (PintDomain domain)

void	receive (std::unique_ptr< State > &state) const

void	send (std::unique_ptr< State > &state) const

void	get_past_state (std::unique_ptr< State > &state) const

void	init_parareal ()

void	run_parareal (int iterations)

Private Attributes
int	_pint_domain

int	_rank

int	_ranks_per_domain

int	_world_rank

MPI_Comm	_local_pint_comm

coupling::configurations::TimeIntegrationConfiguration	_cfg

Scenario *	_scenario

std::unique_ptr< Solver >	_supervisor

std::function< std::unique_ptr< State >(const std::unique_ptr< State > &)>	_F

std::function< std::unique_ptr< State >(const std::unique_ptr< State > &)>	_G

std::unique_ptr< State >	_u_0

std::unique_ptr< State >	_u_last_past

std::unique_ptr< State >	_u_last_future

std::unique_ptr< State >	_u_next_past

std::unique_ptr< State >	_u_next_future

int	_iteration {0}

Detailed Description

template<unsigned int dim>
class coupling::services::ParallelTimeIntegrationService< dim >

Service to manage timeloop of a coupled simulation scenario. Supports sequential or parallel-in-time integration using a Parareal variant, as described in "Blumers, A. L., Li, Z., & Karniadakis, G. E. (2019). Supervised parallel-in-time algorithm for long-time Lagrangian simulations of stochastic dynamics: Application to hydrodynamics. Journal of Computational Physics, 393, 214-228".

Author: Piet Jarmatz

The documentation for this class was generated from the following file:

coupling/services/ParallelTimeIntegrationService.h
