coupling::paralleltopology::ZYXTopology< dim > Class Template Reference

The ZYXTopology orders the ranks in z-y-x manner. More...

#include <ZYXTopology.h>

Inheritance diagram for coupling::paralleltopology::ZYXTopology< dim >:

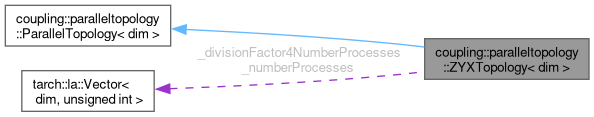

Collaboration diagram for coupling::paralleltopology::ZYXTopology< dim >:

Public Member Functions
	ZYXTopology (tarch::la::Vector< dim, unsigned int > numberProcesses)
virtual	~ZYXTopology ()
tarch::la::Vector< dim, unsigned int >	getProcessCoordinates (unsigned int rank, unsigned int topologyOffset) const
	converts rank into process coordinates.
unsigned int	getRank (tarch::la::Vector< dim, unsigned int > processCoordinates, unsigned int topologyOffset) const
Public Member Functions inherited from coupling::paralleltopology::ParallelTopology< dim >
virtual	~ParallelTopology ()

Private Member Functions
tarch::la::Vector< dim, unsigned int >	initDivisionFactor (tarch::la::Vector< dim, unsigned int > numberProcesses) const

Private Attributes
const tarch::la::Vector< dim, unsigned int >	_numberProcesses
const tarch::la::Vector< dim, unsigned int >	_divisionFactor4NumberProcesses

Detailed Description

template<unsigned int dim>
class coupling::paralleltopology::ZYXTopology< dim >

The ZYXTopology orders the ranks in z-y-x manner.

In the ZYXTopology, the process coordinates convert to a rank as rank = x*ny*nz + y*nz + z = z + nz*(y+ny*x) (for 3D). topologyOffset is used for linearized access of multiple MD instances. Derived class from the class ParallelTopology. E.g. assuming ParallelTopologyType = XYZ and there is a cubic domain, splitted into 8 sub-domains (2 sub-domains in each dimension). Then the ordering of the MPI processes is: Rank=0 for x=0,y=0,z=0. Rank=1 for x=0,y=0,z=1. Rank=2 for x=0,y=1,z=0. Rank=3 for x=0,y=1,z=1. Rank=4 for x=1,y=0,z=0. Rank=5 for x=1,y=0,z=1. Rank=6 for x=1,y=1,z=0. Rank=7 for x=1,y=1,z=1.

Template Parameters

dim	Number of dimensions; it can be 1, 2 or 3

Author

Philipp Neumann

Todo

Philipp could you please take a look on this class

Constructor & Destructor Documentation

ZYXTopology()

template<unsigned int dim>

coupling::paralleltopology::ZYXTopology< dim >::ZYXTopology ( tarch::la::Vector< dim, unsigned int > numberProcesses )

inline

Constructor

~ZYXTopology()

template<unsigned int dim>

virtual coupling::paralleltopology::ZYXTopology< dim >::~ZYXTopology ( )

inlinevirtual

Destructor

Member Function Documentation

getProcessCoordinates()

template<unsigned int dim>

tarch::la::Vector< dim, unsigned int > coupling::paralleltopology::ZYXTopology< dim >::getProcessCoordinates ( unsigned int rank, unsigned int topologyOffset ) const

inlinevirtual

converts rank into process coordinates.

This function takes rank as input and return the correpsponding process coordinates.

Parameters

rank

Rank

Implements coupling::paralleltopology::ParallelTopology< dim >.

getRank()

template<unsigned int dim>

unsigned int coupling::paralleltopology::ZYXTopology< dim >::getRank ( tarch::la::Vector< dim, unsigned int > processCoordinates, unsigned int topologyOffset ) const

inlinevirtual

computes the rank as shown above, see second formula of class definition

Implements coupling::paralleltopology::ParallelTopology< dim >.

initDivisionFactor()

template<unsigned int dim>

tarch::la::Vector< dim, unsigned int > coupling::paralleltopology::ZYXTopology< dim >::initDivisionFactor ( tarch::la::Vector< dim, unsigned int > numberProcesses ) const

inlineprivate

sets the division factor for each vector entry. For ZYX, this corresponds to (in 3D) (ny*nz,nz,1) and to (2D) (ny,1).

---

The documentation for this class was generated from the following file:

• coupling/paralleltopology/ZYXTopology.h
