coupling::indexing::IndexingService< dim > Class Template Reference

#include <IndexingService.h>

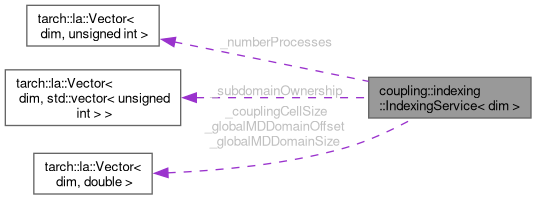

Collaboration diagram for coupling::indexing::IndexingService< dim >:

Public Member Functions
void	initWithCells (tarch::la::Vector< dim, unsigned int > globalNumberCouplingCells, tarch::la::Vector< dim, unsigned int > numberProcesses, coupling::paralleltopology::ParallelTopologyType parallelTopologyType, unsigned int outerRegion, const unsigned int rank, MPI_Comm comm=MPI_COMM_WORLD)
void	initWithCells (const tarch::la::Vector< dim, std::vector< unsigned int > > &subdomainWeights, tarch::la::Vector< dim, unsigned int > globalNumberCouplingCells, tarch::la::Vector< dim, unsigned int > numberProcesses, coupling::paralleltopology::ParallelTopologyType parallelTopologyType, unsigned int outerRegion, const unsigned int rank, MPI_Comm comm=MPI_COMM_WORLD)
void	initWithMDSize (const tarch::la::Vector< 3, double > &globalMDDomainSize, const tarch::la::Vector< 3, double > &globalMDDomainOffset, const tarch::la::Vector< 3, unsigned int > &mdNumberProcesses, const tarch::la::Vector< 3, double > &couplingCellSize, coupling::paralleltopology::ParallelTopologyType parallelTopologyType, unsigned int outerRegion, unsigned int rank, MPI_Comm comm=MPI_COMM_WORLD)
void	initWithMDSize (const tarch::la::Vector< dim, std::vector< unsigned int > > &subdomainWeights, const tarch::la::Vector< 3, double > &globalMDDomainSize, const tarch::la::Vector< 3, double > &globalMDDomainOffset, const tarch::la::Vector< 3, unsigned int > &mdNumberProcesses, const tarch::la::Vector< 3, double > &couplingCellSize, coupling::paralleltopology::ParallelTopologyType parallelTopologyType, unsigned int outerRegion, unsigned int rank, MPI_Comm comm=MPI_COMM_WORLD)
void	finalize ()
std::vector< unsigned int >	getRanksForGlobalIndex (const BaseIndex< dim > &globalCellIndex, unsigned int topologyOffset) const
unsigned int	getUniqueRankForCouplingCell (const BaseIndex< dim > &globalCellIndex, unsigned int topologyOffset) const
MPI_Comm	getComm () const
unsigned int	getRank () const
bool	isInitialized () const
tarch::la::Vector< dim, double >	getGlobalMDDomainSize () const
tarch::la::Vector< dim, double >	getGlobalMDDomainOffset () const
	returns the offset, i.e. the lower,left... corner coordinate, of the MD domain.
tarch::la::Vector< dim, double >	getCouplingCellSize () const
	returns the vector size of each coupling cell.
unsigned int	getScalarNumberProcesses () const
BaseIndex< dim >	getCellIndex (tarch::la::Vector< dim, double > position) const

Static Public Member Functions
static IndexingService &	getInstance ()

Private Member Functions
unsigned int	getUniqueRankForCouplingCell (tarch::la::Vector< dim, unsigned int > globalCellIndex, const tarch::la::Vector< dim, unsigned int > &globalNumberCouplingCells, unsigned int topologyOffset) const

Private Attributes
tarch::la::Vector< dim, unsigned int >	_numberProcesses
unsigned int	_scalarNumberProcesses
const coupling::paralleltopology::ParallelTopology< dim > *	_parallelTopology
MPI_Comm	_comm
unsigned int	_rank
bool	_isInitialized = false
bool	_initedWithMDSize = false
tarch::la::Vector< dim, std::vector< unsigned int > >	_subdomainOwnership
tarch::la::Vector< dim, double >	_globalMDDomainSize
tarch::la::Vector< dim, double >	_globalMDDomainOffset
tarch::la::Vector< dim, double >	_couplingCellSize
coupling::paralleltopology::ParallelTopologyType	_parallelTopologyType
friend	IndexingServiceTest

Detailed Description

template<unsigned int dim>
class coupling::indexing::IndexingService< dim >

Singleton service class initialising lower and upper boundaries of all possible CellIndex specialisations.

Template Parameters

dim	number of dimensions of the coupled simulation

Parameters

simpleMDConfig	config object of SimpleMD instance used in coupling
mamicoConfig	config object containg general information of coupling process
outer	region

Author

Felix Maurer

Member Function Documentation

getCouplingCellSize()

template<unsigned int dim>

tarch::la::Vector< dim, double > coupling::indexing::IndexingService< dim >::getCouplingCellSize ( ) const

inline

returns the vector size of each coupling cell.

Returns

the size of the coupling cells (dimensional)

getGlobalMDDomainOffset()

template<unsigned int dim>

tarch::la::Vector< dim, double > coupling::indexing::IndexingService< dim >::getGlobalMDDomainOffset ( ) const

inline

returns the offset, i.e. the lower,left... corner coordinate, of the MD domain.

Returns

the offset of the MD domain

getGlobalMDDomainSize()

template<unsigned int dim>

tarch::la::Vector< dim, double > coupling::indexing::IndexingService< dim >::getGlobalMDDomainSize ( ) const

inline

returns the global domain size of the MD domain (excl. ghost layer which naturally is not part of MD).

Returns

the total size of the md simulation domain (dimensional)

getRanksForGlobalIndex()

template<unsigned int dim>

std::vector< unsigned int > coupling::indexing::IndexingService< dim >::getRanksForGlobalIndex	(	const BaseIndex< dim > &	globalCellIndex,
		unsigned int	topologyOffset ) const

Determines all ranks that contain a certain global BaseIndex. Ripped from deprecated IndexConversion.

Parameters

globalCellIndex	index to be looked up
globalNumberCouplingCells	global number of cells in BaseIndex domain EXCLUDING global ghost layer cells.

Returns

vector of all cells which contain the index

---

The documentation for this class was generated from the following file:

• coupling/indexing/IndexingService.h
