coupling::filtering::NLM< dim, scope > Class Template Reference

#include <NLM.h>

Inheritance diagram for coupling::filtering::NLM< dim, scope >:

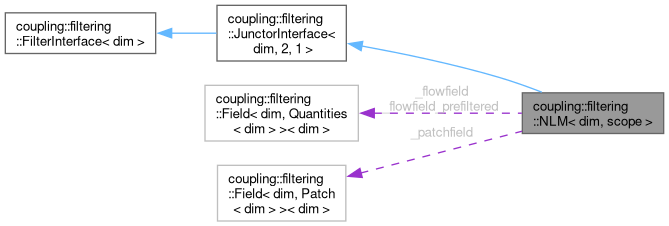

Collaboration diagram for coupling::filtering::NLM< dim, scope >:

Public Types
using	CellIndex_T
Public Types inherited from coupling::filtering::FilterInterface< dim >
using	CellIndex_T

Public Member Functions
	NLM (const std::vector< coupling::datastructures::CouplingCell< dim > * > inputCellVector_unfiltered, const std::vector< coupling::datastructures::CouplingCell< dim > * > inputCellVector_prefiltered, const std::vector< coupling::datastructures::CouplingCell< dim > * > outputCellVector, const std::array< bool, 7 > filteredValues, int tws, double sigsq, double sigsq_rel, double hsq, double hsq_rel, int M=2, int d=1)
void	operator() ()
Public Member Functions inherited from coupling::filtering::JunctorInterface< dim, 2, 1 >
	JunctorInterface (const std::array< std::vector< coupling::datastructures::CouplingCell< dim > * >, inputc > inputCellVectors, const std::array< std::vector< coupling::datastructures::CouplingCell< dim > * >, outputc > outputCellVectors, const std::array< bool, 7 > filteredValues, const char *type)
void	updateCellData (std::vector< coupling::datastructures::CouplingCell< dim > * > new_inputCellVectors[inputc], std::vector< coupling::datastructures::CouplingCell< dim > * > new_outputCellVectors[outputc], std::vector< tarch::la::Vector< dim, unsigned int > > &new_cellIndices)
Public Member Functions inherited from coupling::filtering::FilterInterface< dim >
	FilterInterface (const std::vector< coupling::datastructures::CouplingCell< dim > * > &inputCellVector, const std::vector< coupling::datastructures::CouplingCell< dim > * > &outputCellVector, const std::array< bool, 7 > filteredValues, const char *type)
	FilterInterface (const char *type)
void	updateCellData (const std::vector< coupling::datastructures::CouplingCell< dim > * > &new_inputCells, const std::vector< coupling::datastructures::CouplingCell< dim > * > &new_outputCells)
const char *	getType () const
std::vector< coupling::datastructures::CouplingCell< dim > * >	getInputCells () const
std::vector< coupling::datastructures::CouplingCell< dim > * >	getOutputCells () const
coupling::datastructures::CouplingCell< dim > *	getInputCellOfIndex (const CellIndex_T &index)
coupling::datastructures::CouplingCell< dim > *	getOutputCellOfIndex (const CellIndex_T &index)
void	setInputCells (const std::vector< coupling::datastructures::CouplingCell< dim > * > &newInputCells)
int	getSize () const

Private Member Functions
void	save_data ()
void	update_patchfield ()
void	denoise ()
std::vector< tarch::la::Vector< dim, int > >	compute_boundary_neighbors (const tarch::la::Vector< dim, unsigned int > &)
void	increment_time ()
unsigned int	posmod (int i, int n) const

Private Attributes
const unsigned int	_timeWindowSize
const unsigned int	_M
const unsigned int	_d
double	_sigsq
double	_sigsq_rel
double	_hsq
double	_hsq_rel
unsigned int	_cycleCounter
unsigned int	_t
coupling::filtering::Flowfield< dim >	_flowfield
coupling::filtering::Flowfield< dim >	_flowfield_prefiltered
coupling::filtering::Patchfield< dim >	_patchfield
std::vector< CellIndex_T >	_innerCellIndices

Additional Inherited Members
Protected Attributes inherited from coupling::filtering::JunctorInterface< dim, 2, 1 >
std::array< std::vector< coupling::datastructures::CouplingCell< dim > * >, inputc >	_inputCellVectors
std::array< std::vector< coupling::datastructures::CouplingCell< dim > * >, outputc >	_outputCellVectors
Protected Attributes inherited from coupling::filtering::FilterInterface< dim >
std::vector< coupling::datastructures::CouplingCell< dim > * >	_inputCells
std::vector< coupling::datastructures::CouplingCell< dim > * >	_outputCells
std::vector< ScalarAccessFunctionPair >	_scalarAccessFunctionPairs
std::vector< VectorAccessFunctionPair >	_vectorAccessFunctionPairs
const char *	_type

Detailed Description

template<unsigned int dim, coupling::indexing::IndexTrait... scope>
class coupling::filtering::NLM< dim, scope >

Noise reduction algorithm using non-local means (NLM) method See 'Fast Non Local Means Denoising for 3D MR Images' by Coupé et al. 2006 and 'Non-Local Means Denoising' by Buades et al. 2011.

Author

Piet Jarmatz

Member Typedef Documentation

CellIndex_T

template<unsigned int dim, coupling::indexing::IndexTrait... scope>

using coupling::filtering::NLM< dim, scope >::CellIndex_T

Initial value:

 coupling::indexing::CellIndex<dim, coupling::indexing::IndexTrait::vector, scope..., coupling::indexing::IndexTrait::md2macro,
                                                    coupling::indexing::IndexTrait::noGhost>

Member Function Documentation

compute_boundary_neighbors()

template<unsigned int dim, coupling::indexing::IndexTrait... scope>

std::vector< tarch::la::Vector< dim, int > > coupling::filtering::NLM< dim, scope >::compute_boundary_neighbors ( const tarch::la::Vector< dim, unsigned int > & )

private

Compute which filtering results we need here.

Parameters

idx_inner

Index of this cell on the inner local MD 2 macro domain, i.e. the domain where the patchfield is defined

Returns

Relative offsets, of all neighboring boundary cells and this cell itself

denoise()

template<unsigned int dim, coupling::indexing::IndexTrait... scope>

void coupling::filtering::NLM< dim, scope >::denoise ( )

private

Main loop of NLM algorithm, computes filtering output for one coupling cycle.

increment_time()

template<unsigned int dim, coupling::indexing::IndexTrait... scope>

void coupling::filtering::NLM< dim, scope >::increment_time ( )

private

Must be called to indicate that one coupling cycle is finished and timestep counters should be incremented.

operator()()

template<unsigned int dim, coupling::indexing::IndexTrait... scope>

void coupling::filtering::NLM< dim, scope >::operator() ( )

virtual

Implements coupling::filtering::FilterInterface< dim >.

save_data()

template<unsigned int dim, coupling::indexing::IndexTrait... scope>

void coupling::filtering::NLM< dim, scope >::save_data ( )

private

Stores new values from inputCellVectors into _flowfield and _flowfield_prefiltered for this timestep _t.

update_patchfield()

template<unsigned int dim, coupling::indexing::IndexTrait... scope>

void coupling::filtering::NLM< dim, scope >::update_patchfield ( )

private

Reconstructs _patchfield(idx,_t) for all inner cell indices idx, so that new information from updated flowfield will be included.

---

The documentation for this class was generated from the following file:

• coupling/filtering/filters/NLM.h
